Mission Parameters & Architectural Vision

The objective of this engineering initiative is to transition the Squirrelworks lab ecosystem away from legacy virtualization models and establish a hardened, production-grade Multi-Node Kubernetes cluster. By leveraging the security and efficiency profiles of enterprise-tier Open Source utilities, this bare-metal platform is built to deliver highly stable, self-healing runtime behaviors under rigorous bare-metal constraints.

Primary Infrastructure Targets

The Entropy Reduction Blueprint

This cluster setup functions as a technical playbook for predictable, scalable operations. Eliminating intermediate application abstractions and decoupling the underlying container runtime networking guarantees deterministic performance behaviors across the entire compute host layer.

1. Provisioning the Rocky Linux 9 Base

To establish a resilient cloud-native control plane, the master node was deployed on a minimal Rocky Linux 9 virtual instance within Proxmox. Standard network plumbing was locked down via SSH key integration, providing a stable foundation for the enterprise-grade Rancher Kubernetes Engine (RKE2).

2. Decoupling the Network Layer (CNI Switch)

During initial orchestration, a custom manifest was staged at /etc/rancher/rke2/config.yaml to inject the directive cni: none. This intentional override completely bypassed the default Canal network plugin, preventing the cluster API from establishing standard routing mechanisms and placing the control plane into a deliberate network holding pattern.

The Intentional NotReady Safe-State

By running kubectl get nodes post-initialization, the node safely defaults to a NotReady state. This is not an error—it is an expected architectural behavior proving the API server is up, running, and securely waiting for an advanced eBPF network fabric to claim its interface.

1. Static Token Authentication

Expanding the multi-node infrastructure required staging the secondary machine, rocky-worker-01. By linking the cryptographic joint token from the primary supervisor log into the worker's configuration path at 192.168.0.198, an ironclad hardware-to-host handshake was verified.

2. Remediation: Post-Crash State Alignment

Following a system-level interruption right after package deployment, a forensic review showed that while the rke2-agent.service was enabled, it had never actively executed. Resolving this discrepancy involved executing a live daemon state change on the worker host CLI:

The node cleanly entered the runtime cluster matrix, aligning its age telemetry in the control plane database without throwing a single TLS handshake anomaly.

1. Minimal OS Path Constraints

Because RKE2 strips internal runtime folders down to raw core mechanics, an investigation of the internal path structure revealed that standard utilities like helm were excluded from the binary profile layer. Attempts to establish quick symlinks failed due to the nonexistent target paths within the core orchestration directories.

2. Restoring the Upstream Binary Matrix

To bypass the minimal OS constraints of Rocky Linux without cluttering environment path files, the pure vanilla upstream binary for Helm v3 was downloaded. Because the minimal OS profile lacked native archive decompression capabilities, the package manager was used to inject the toolset required to place and flag the execution rights:

The Happy Helming Milestone

With the physical binary safely bound into /usr/local/bin/helm, index tables updated flawlessly. Injecting the official Cilium stable repository securely hooks our local system straight into the eBPF staging yard....

1. Diagnosing the Port Mismatch

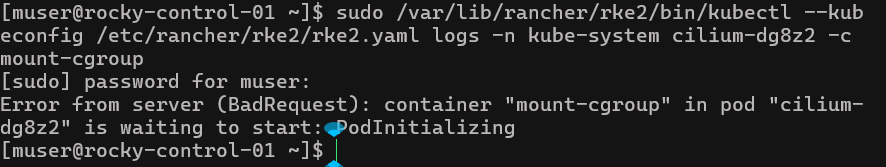

Initial deployment logs indicated the Cilium initialization pods were locked in a persistent PodInitializing block, throwing an Init:CrashLoopBackOff flag. A deep forensic review via kubectl describe pod revealed an architectural endpoint conflict: Cilium was attempting to map the global cluster topology through the RKE2 Supervisor Port (9345) instead of the standard Kubernetes API Server Port (6443).

The Supervisor Error Vector

The supervisor port on 9345 handles internal node registration and certificate synchronization. Passing API requests to this daemon causes an immediate failure return: "the server could not find the requested resource (get namespaces kube-system)".

2. Executing the Infrastructure Parameters Update

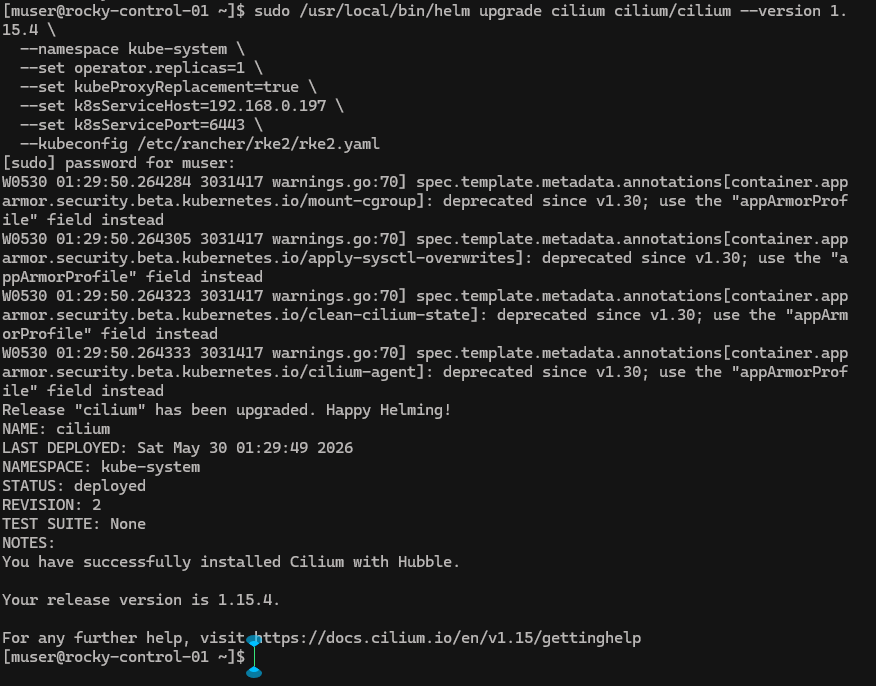

To redirect the eBPF control hooks onto the valid API endpoint registry, a hot Helm database upgrade was fired down on the control plane terminal, hard-coding the data pipeline straight to the true API gateway:

sudo /usr/local/bin/helm upgrade cilium cilium/cilium --version 1.15.4 \
  --namespace kube-system \
  --set operator.replicas=1 \
  --set kubeProxyReplacement=true \
  --set k8sServiceHost=192.168.0.197 \
  --set k8sServicePort=6443 \
  --kubeconfig /etc/rancher/rke2/rke2.yaml

Helm processed the parameter updates cleanly, outputting a successful REVISION: 2 tracking manifest to the cluster backend.

1. The Proxmox Bridge Packet Collision

The immediate activation of native kubeProxyReplacement=true triggered a critical network outage, severing management access to the Proxmox hypervisor IP (192.168.0.105). Cilium’s high-performance eBPF engine attempted to hook directly into the virtual interface drivers to establish direct packet routing. However, this action clashed head-on with the active hypervisor-level Proxmox Hardware Firewall on the VM network devices.

The simultaneously active packet-filtering engines generated an intense Layer 2 MAC flapping loop/ARP storm, completely saturating the Proxmox virtual bridge (vmbr0) and dropping all external management traffic.

2. Emergency Console Isolation & Mitigation

To break the data loop without risking a host kernel crash, access was established via the hardware terminal console of the physical Proxmox node, forcing an immediate teardown of the cluster virtual machines and a flush of the network interfaces:

# Local Hypervisor Emergency Restoration Terminal
qm stop 107 && qm stop 108
systemctl restart networking

3. Decoupling Filtering Rules for Native eBPF Access

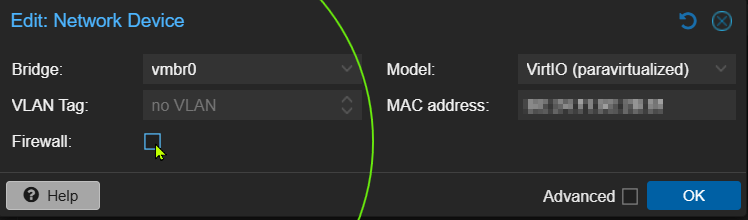

To guarantee clean execution paths for the cluster datapath going forward, the Proxmox virtual hardware firewall was permanently un-checked across both rocky-control-01 and rocky-worker-01 interface properties. This architecture safely hands over full Layer 2–4 network policy management natively to Cilium's internal security engines.

1. End-to-End Data Plane Validation

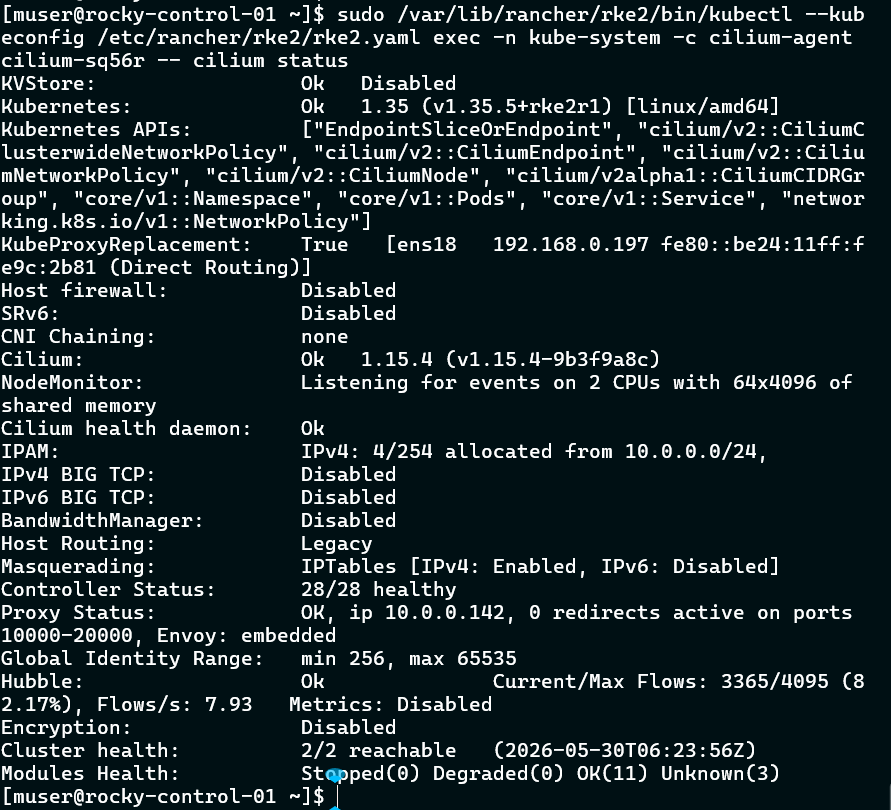

Following host network restoration, both compute nodes negotiated successful secure cluster entry. Querying the integrated CNI environment via cilium status verified that the infrastructure paths had attained complete operational integrity.

The eBPF controller reported 2/2 cluster hosts reachable over direct routing lanes with zero memory allocation errors or route tracking dropouts.

2. CoreDNS Status Resolution

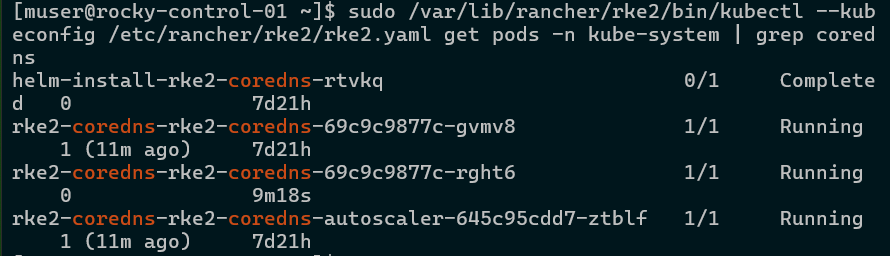

With a highly efficient network fabric successfully claiming the underlying kernel interfaces, the core cluster DNS resources were automatically kicked out of their pending states. The deployment engine successfully bound local container IPs and scaled up active instances smoothly:

The Deterministic Goal State Attained

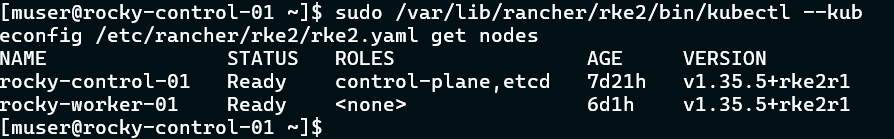

Executing a terminal-wide kubectl get nodes confirms both hosts are sitting comfortably at a permanent Ready status. The Squirrelworks lab multi-node environment is fully live, secure, and ready to receive production-tier container deployments.

Chronological Project Deployment Phase Roadmap

The comprehensive multi-stage deployment log tracks the engineering sprint from base host provisioning through advanced eBPF networking overrides, including structural debugging mitigations handled along the line:

Active Lab Environmental Architecture Blueprint

The finalized infrastructure layout registers the validated states for all active network paths and system layers across the multi-node setup:

Project State: Verified Production-Ready Baseline

With all network elements verified, path errors resolved, and cluster health metrics running clear of faults, the Squirrelworks cloud-native platform phase has successfully attained a hardened baseline status. The multi-node cluster topology stands fully operational.
